Item Sales Info
Part Number: AENQ8 / Vendor ID Number: 38 / Custom:

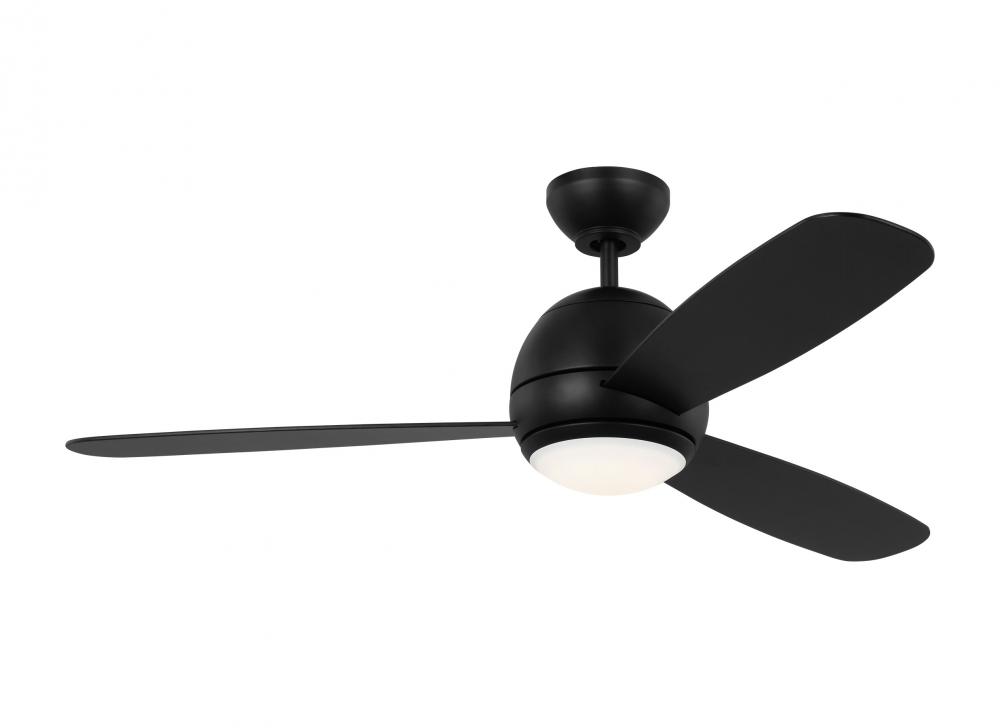

Orbis 52" Ceiling Fan

Orbis 52" Ceiling Fan
by Generation Lighting 3OBSR52MBKD

365
56
Pack Of: 1
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Width: 52.00"
Product Overview
With a minimalist, contemporary design, the Orbis 52 LED fan can complement a wide variety of room styles. It’s offered in four finish combinations to suite virtually any décor. A hard-wired wall control is included. Ideal for use in great rooms, living rooms, bedrooms and bonus rooms.
Product Availability
    Item is usually in stock, but we'll be in touch if there's a problem
Included Items
Bulbs: (1) x 20 Watt 19 - Integrated Array
Finish:
Blade Finish:
Additional options that would change other selections
Additional Information
4.5'' brushed steel downrod included, sloped ceiling compatible, and includes all mounting hardware for easy installation
Available Finishes: Brushed Steel, Matte White, Midnight Black and Satin Brass
Contemporary 3-blade ceiling fan ideal for bedrooms, living rooms, family rooms, and outdoor covered porches and patios
Damp Rated
From the brand formerly known as Monte Carlo
Includes a remote controlled 3000K, 20-watt, dimmable integrated LED light bulb for eco-friendly lighting
Info & Guides
Click Here to View Instruction Sheet
Technical Details
Details
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
Black /vendors/vendorImages black.jpg
Style:
Contemporary
Option:
Damp Rated
Number of Blades:
3 Blades
Location Rating:
Damp Rated
Wattage:
20w
Category:
Ceiling Fan
Finish:
Midnight Black
Style:
Contemporary
Option:
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Family:
Orbis
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Blade Finish:
Midnight Black
Blade Pitch:
12
Blade Span:
52
Bulb Type:
Array
Canopy:
5.75 Dia x 2.5 H
Introduction Date:
01/01/2023
Kelvin:
3000
Keyword(s):
Bedroom, Livingroom, Great Room
Light Kit Included:
Yes
Lumens / Light Output:
1120
Motor Size:
153 x 18 mm
Motor Type:
AC
Order Minimum:
1
Remote Control Included:
Yes
Ship Carton Height:
11.75
Ship Carton Length:
26
Ship Carton Width:
13.63
Ship Weight:
21.45
Sold By:
EA
Vendor Ship Method:
Parcel
Weight:
16.1
Blade To Ceiling Height:
11.8
Bulb Base:
19 - Integrated
Bulb CRI:
90
Bulb Dimming Range Max:
100
Bulb Dimming Range Min:
10
Bulb Included:
Yes
Bulb Light Source Name:
LED
Bulb Rated Life:
50000
Bulb Watts Rated:
20
C&N:
Wall Mount Control, 4-Speed, Dimmer and Manual Reverse
Canopy Style:
Downrod
Capacitor Value:
4uF/350V/105C
CFM High:
5295
CFM Low:
1734
CFM Watt High:
88
CFM Watt LOW:
248
Country of Origin:
China
Downrod Diameter:
0.5
Downrod Length:
4.5
Energy Star:
No
Fan Style:
Downrod
Freight Class:
110
Lamping:
1 Array Integrated 20 Watt Light Bulb
Location Rating:
Damp Rated
Max Ceiling Slope:
20
Max Wattage:
20 W
Maximum Blade To Ceiling Height:
11.8
Minimum Blade To Ceiling Height:
10.3
Minimum Ceiling Height Required:
7.98
Number of Blades:
3
Overall Height:
14.6
Qty Fabric Glass Shades:
1
Safety Rating:
cUL Approved
Shade Diameter:
7
Shade Finish:
Frosted
Shade Height:
1.38
Shade Shape:
Round
Standard Efficiency:
104
Standard Energy Use Wave:
35
Standard Estimated Yearly Energy Cost:
10
Standard Weighted Average Airflow:
3626
Title 24:
Yes
TSCA Title VI Compliant:
Yes
Watts High:
60
Watts Low:
7
Manufactured By:
Generation Lighting
